Scaling and Reasoning in Foundational Models

The training of an LLM model can be split into 2 stages. The pre-training and the post-training. Pre-training is the part we throw all the data we have at a transformer based model, and teach it to predict the next token based on internet data. Post-training is the stage where we train the model's reasoning capabilities. This step usually has SFT and RL stages.

This document analyzes different methods in which we can scale the reasoning part of foundational models.

This document presents a technical audit of 3 contemporary approaches to scaling reasoning capabilities in foundation models:

(1) Reinforcement learning (RL) driven symbolic reasoning using Group Relative Policy Optimization (GRPO).

(2) As specific application of RL that allows for emergent reasoning without requiring annotated training data.

(3) Physical AI systems trained using GRPO, Physical common-sense and Embodied reasoning.

Problem Domain & Taxonomy

We define reasoning as the capacity to produce structured, coherent intermediate chains that reflect underlying domain abstractions:

• In symbolic domains (math, logic, code),
• In physics-informed domains (embodied interaction, world-state transition).

These papers try to approach this by objectively shaping reasoning, data and pretraining scaling, multimodal embodiment, bargaining between process complexity and context length etc.

Taxonomy of approaches

1. Objective Shaping for Reasoning Emergence: This class of methods treats reasoning as an emergent property that can be induced through carefully designed optimization objectives rather than explicit symbolic structure. Reinforcement learning is used to bias the model toward generating longer, more coherent intermediate chains by rewarding correctness at the trajectory level. GRPO exemplifies this approach by replacing absolute reward estimation with group-relative advantage normalization, implicitly encouraging internal competition between candidate reasoning traces. The core assumption is that structured reasoning can be recovered purely through reward shaping over token sequences, without grounding in external state dynamics.

2. Data & Pretraining Modality Scaling: This line of work focuses on scaling reasoning capacity through domain-specialized pretraining data rather than changes to the objective. In this paradigm, reasoning improves as a function of exposure to large volumes of structured domain text. DeepSeekMath follows this strategy by aggressively curating large-scale mathematical corpora using Common Crawl and OpenWebMath and combining them with instruction tuning and RL. Here, reasoning is not explicitly enforced but statistically induced via data distribution shift toward problems that require multi-step abstraction.

3. Grounded Multimodal Embodiment: Grounded embodiment approaches aim to scale reasoning by anchoring model representations to the physical world. Instead of optimizing purely over text trajectories, these methods incorporate visual inputs and action-relevant representations, with the goal of aligning semantic reasoning to physical common sense. Cosmos-Reason1 follows this paradigm by introducing ontologies for physical concepts and training multimodal models over vision-language inputs that proxy embodied interaction. The underlying hypothesis is that grounding reasoning in perceptual structure yields more robust abstractions than symbolic optimization alone, even if physical feedback remains indirect.

Comparative Architectural Deep-Dive

Objective Functions

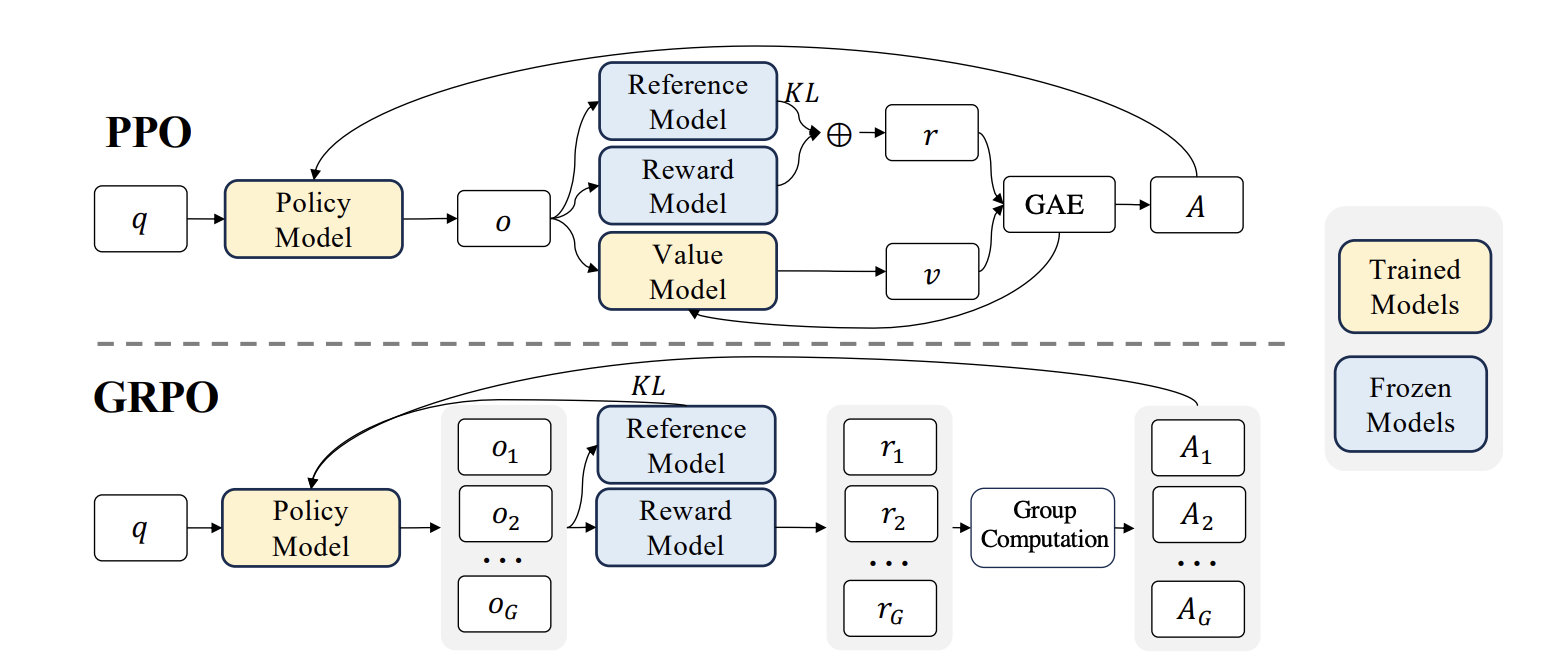

Group Relative Policy Optimization (GRPO) is an improvement in the previously used Proximal Policy Optimization(PPO) method for Reinforcement Learning.

PPO uses an actor-critic model where a value function calculates the Advantage. Advantage (or Generalized Advantage Estimation / GAE) can be thought of as "How much better a specific action a_t is compared to an average action considering the current state s_t.

Step	PPO	GRPO
Step 1 Rollout / Sampling	Freeze current policy $\pi_\text{old}$ Sample output tokens $o_1, o_2, \ldots o_T$	For each prompt, sample a group of $G$ responses ${y_1, y_2, \ldots, y_G}$ Sampling is done at the response level, not token level
Step 2 Reward Computation	Reward model assigns a score KL penalty added per token $r_t = r_\phi - \beta \log \frac{\pi_\text{ref}(o_t)}{\pi_\theta(o_t)}$	Scalar reward assigned to each response ${r_1, r_2, \ldots, r_G}$ No KL term added at this stage
Step 3 Advantage Estimation	Value model $V_\phi$ used with GAE $\hat A_t = \sum_{l \ge 0} (\gamma \lambda)^l (r_{t+l} - V(s_{t+l}))$	Within-group reward normalization $\hat A_i = \frac{r_i - \mu_r}{\sigma_r}$ $\mu_r$ is mean group reward
Step 4 Loss Computation	PPO clipped objective $L^\text{PPO} = \mathbb E_t[\min(r_t(\theta)\hat A_t,\ \text{clip}(r_t(\theta),1-\epsilon,1+\epsilon)\hat A_t)]$ $r_t(\theta)=\frac{\pi_\theta(o_t)}{\pi_{\theta_\text{old}}(o_t)}$	Policy loss (token-level) $L_\text{policy}=\mathbb E_{i,t}[\min(r_{i,t}(\theta)\hat A_i,\ \text{clip}(r_{i,t}(\theta),1-\epsilon,1+\epsilon)\hat A_i)]$ $r_{i,t}(\theta)=\frac{\pi_\theta(o_{i,t})}{\pi_{\theta_\text{old}}(o_{i,t})}$ KL regularization $L_\text{KL}=\beta,\mathbb E_{i,t}[\text{KL}(\pi_\theta(\cdot\mid s_{i,t})\Vert\pi_\text{ref}(\cdot\mid s_{i,t}))]$ Final loss $L^\text{GRPO}=L_\text{policy}-L_\text{KL}$
Step 5 Optimization	Run $K$ epochs of SGD on the same batch	Reuse the same batch for $K$ epochs

GRPO replaces value-function-based advantages with group-relative rewards, and moves KL regularization out of the reward and directly into the loss. Since, value function is a separate model that needs to be trained, skipping that step helps training the reinforcement learning part faster and more efficient.

DeepSeek-R1 uses GRPO to train the model to reason on its own. Cosmos-Reason1 also uses the GRPO model for the Physical AI RL part of their model.

Backbone Scaling

The DeepSeekMath base is a standard decoder-only Transformer (similar to LLaMA/Qwen style) with autoregressive next-token prediction prior to RL training.

DeepSeek-R1 is also a decoder-only Transformer. It is built upon the work of previous models by the group, specifically DeepSeek-V3. This model is a Mixture of Experts (MOE) model with 671 billion total parameters. On average, only 37 billion are activated every token. DeepSeek-V3 also utilizes Multi-Head Latent Attention, a method the group came up with that fundamentally changes part of the Transformer model, allowing for dramatically lower KV-cache size, up to a factor of 57x, which also speeds up responses and allows for reasoning to be done faster. (Might be useful to put MLA into the the architectural deep dive, wasn't too sure since it's not specifically related to reasoning)

Cosmos-Reason1 uses a decoder-only multimodal LLM with two possible instantiations:

• Dense Transformer backbone
• Hybrid Mamba-MLP-Transformer architecture

Aspect	DeepSeekMath	DeepSeek-R1	Cosmos-Reason1
Backbone types	Pure decoder-only LLM (no vision)	Decoder-only LLM (no vision)	Multimodal: vision encoder + decoder-only LLM
Model sizes	1.5B → 70B parameters	671B parameters, with various distilled variants	8B and 56B variants
Vision modality	None	None	Vision encoder integrated
Data focus	Text reasoning + RL rewards	DeepSeek-V3: Text DeepSeek-R1: 146k questions/prompts with verifiable solutions	Vision + Physical reasoning + RL
Data volume emphasis	Large pretrained LLM RL via reasoning prompts	Large pretrained model on 14.8 trillion tokens	Large vision data + curated task-specific multimodal corpora
Scaling effects	Bigger models show stronger reasoning	Longer training leads to longer reasoning chains and emergent reasoning, with superhuman performance	Larger LLM + vision encoder yields better embodied reasoning

Cosmos-Reason1-7B, uses Qwen2.5-VL as the pre-trained model and the Cosmos-Reason1-56B, uses InternViT-300M-V2.5 as the vision encoder and Nemotron-H as the LLM backbone. Cosmos-Reason1 also uses a Hybrid-Mamba-MLP-transformer architecture unlike the standard transformer backbone architecture to avoid the quadratic time-complexity for the 56B model. For the 7B model, Qwen2.5L acts as the backbone.

Interaction Mechanisms

Deepseek-R1 is a unimodel, self-attention based, decode-only model which improves its reasoning only through RL by GRPO rather than architectural changes. However, as the company/group is Chinese, the model is built for both the English and Chinese language, which sometimes leads to it reasoning in both languages (more commonly in DeepSeek-R1-Zero and addressed but not fully elimiated in R1).

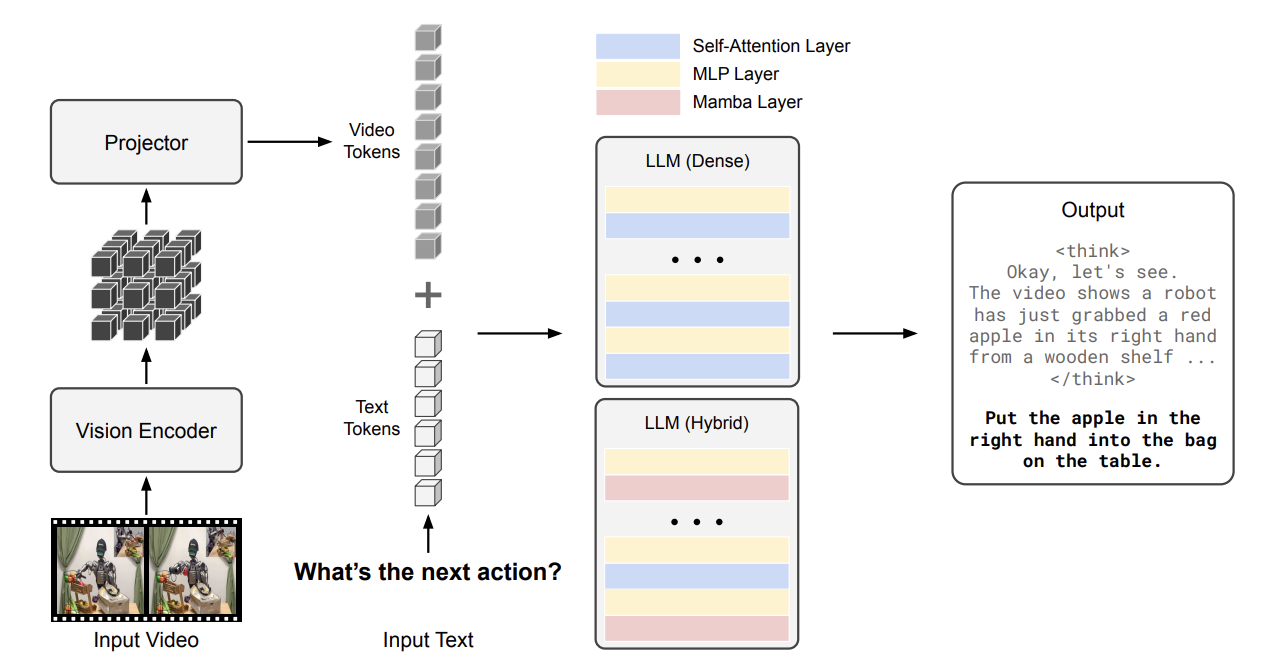

Cosmos-Reason1 fuses the image and text modality using a Vision encoder + projection based fusion strategy.

• For input images, we convert the image into tiles and a low-resolution thumbnail image to maintain full context. Then these tokens are concatenated with interleaved tile IDs.
• For input videos, we convert it into a maximum of 32 frames at a max rate of 2 frames per second. The vision encoder generates 1,024 visual tokens per $448 \times 448$ frame, which are then downsampled by a factor of $2 \times 2$ (using PixelShuffle) to 256 tokens per frame.

These tokens are then concatenated along with the text tokens and passed into the Hybrid-Mamba-MLP-transformer model. The LLM processes both text tokens and projected visual tokens using standard self-attention. This design choice of early fusion of image and text tokens makes sense for this model since this helps the model scale better (8B -> 56B). And also the hybrid architecture helps avoid the quadratic cost of repeated cross-attention at each decoding step.

The Scaling Frontier & Empirical Trends

From the GRPO and the Cosmos-Reason1 papers, we see that the compute-optimal scaling frontier is less parameter focused and more data and algorithm focused. Moving away from the "Throw in more and more parameters and tokens at the model" idea, we start to focus more on the data clarity, reward based optimizations and modality grounding based model design.

In the DeepSeekMath paper, the focus is on training the model on clean math corpus tokens fetched using different algorithms to focus the model only on math related problems in English and Chinese. The model is pretrained on 120B tokens from Common crawl and 500B tokens from Natural Language and code data. And during the instruction tuning and RL stage, the model is trained on GSM8K and Math data with Chain of thought(CoT) and Program of thought (PoT) with Tool-integrated solutions in English and Chinese. These exemplify the focus shift from model size, number of tokens, compute size etc to better reward systems, physical vs symbolic reasoning, balanced training data split between internet data and domain related data.

In the Cosmos-Reason1 work, the focus shifts from text-based symbolic reasoning to multimodal physical and embodied reasoning. The model is trained using a multistage pipeline that includes large-scale vision pretraining followed by supervised fine-tuning and reinforcement learning on curated multimodal datasets targeting physical commonsense, spatial reasoning, and temporal understanding. Visual inputs are processed by a pretrained vision encoder and projected into the LLM embedding space using an MLP, allowing joint reasoning within a decoder-only language model. Experiments across the 8B and 56B model variants show that while increased model size improves performance, the primary gains come from domain-specific multimodal data and task-aligned reward signals, rather than additional generic image–text data or further scaling of parameters.

For DeepSeek-R1, the authors propose that the problem with relying only on human-annotated reasoning traces is that this can introduce various biases into the data, as well as prevent the model from performing much better than humans. This human-annotated data is also fairly expensive, which is why they use RL and GRPO to allow the model to reason by itself. This self-evolution of reasoning also displays various interesting and useful properties. One such example is that, throughout the training process, the reasoning chains actually increase in length over time. This is purely an emergent behavior, as the model isn't explicitly encouraged to think for longer. This increased time "thinking" also leads to various emergent behaviors such as exploring alternate solutions, and the researchers note that the model begins to say "wait" in the later stages of training, and flagging some parts of its own reasoning as important or relevant.

Data Walls

Language-only models (DeepSeekMath)

• Internet-scale text saturates surface-level reasoning
• Gains increasingly come from:
  • structured reasoning prompts
  • rule-based or verifiable reward signals
• Raw text scale alone shows diminishing returns, we need custom RL or SFT modelling to extract the full potential reasoning capabilities.

Emergent Reasoning (DeepSeek-R1)

• Emergent reasoning through reinforcement learning relies on problems that have verifiable solution, with the correctness of the output being used as the reward
  • Many problems don't have a verifiable solution, especially in creativity-related tasks like writing.
  • These problems still rely on human annotated data to train, which is what the group was trying to avoid in the first place
    • Human annotated data, especially reasoning data, can be expensive and noisy
• Emergent reasoning can be hard to interpret
  • In the case on R1-Zero specifically, the model tended to use both English and Chinese during reasoning
  • Needs SFT to refine reasoning in some cases

Multimodal / physical reasoning (Cosmos-Reason1)

• Vision–language grounding hits a wall with:
  • generic image–caption datasets
• Requires:
  • curated physical commonsense data
  • task-specific embodied supervision
• Data scarcity is now the bottleneck, not model size

Scaling Laws

• Data Quality vs. Parameter Scale: The authors show that DeepSeekMath-Base 7B (trained on 120B high-quality math tokens) achieves 64.2% on GSM8K, outperforming Minerva 540B. This suggests an empirical relationship where a 77x reduction in parameters can be compensated for by a 7x increase in domain-specific data scale.

Paper	Model	Benchmark	Reported Accuracy
DeepSeekMath	7B (Base)	GSM8K	64.2%
DeepSeekMath	7B (Instruct (Basically Base + CoT+ PoT + Tool integration))	GSM8K	82.9%
DeepSeekMath	7B (RL/GRPO)	GSM8K	88.2%
Minerva	540B	78.5%
Cosmos-Reason1	7B (SFT)	Physical Common Sense	"75.4% (Average across Space, Time, Physics)"
Cosmos-Reason1	56B (SFT)	Physical Common Sense	"80.6% (Average across Space, Time, Physics)

Increasing model size does improve the model performance in different benchmarks, but this increase is more incremental and modest rather than dramatic, indicating that parameter scaling alone does not introduce qualitatively new reasoning behavior. But introducing RL, improved the performance from the Minerva comparable model to 88.2% in GSM8K benchmark model.

• Model Size and Reasoning Capabilities: The authors of DeepSeek-R1 analyzed the performance of the model after distilling, and compare the effect of distilling the large reasoning model into a smaller model to trying to produce reasoning in a smaller model. (pass@1 is first generated answer is correct, cons@64 is most common answer at 64 generations is correct)

Model	AIME 2024 (pass@1)	AIME 2024 (cons@64)	MATH (pass@1)	GPQA (pass@1)	LiveCode (pass@1)	CodeForces / Diamond Bench (rating)
GPT-4o-0513	9.3	13.4	74.6	49.9	32.9	759
Claude-3.5-Sonnet-1022	16.0	26.7	78.3	65.0	38.9	717
DeepSeek-R1-Distill-Qwen-1.5B	28.9	52.7	83.9	33.8	16.9	954
DeepSeek-R1-Distill-Qwen-7B	55.5	83.3	92.8	49.1	37.6	1189
DeepSeek-R1-Distill-Qwen-14B	69.7	80.0	93.9	59.1	53.1	1481
DeepSeek-R1-Distill-Qwen-32B	72.6	83.3	94.3	62.1	57.2	1691
DeepSeek-R1-Distill-Llama-8B	50.4	80.0	89.1	49.0	39.6	1205
DeepSeek-R1-Distill-Llama-70B	70.0	86.7	94.5	65.2	57.5	1633
QwQ-32B-Preview	50.0	60.0	90.6	54.5	41.9	—
Qwen2.5-32B-Zero	47.0	60.0	91.6	55.0	40.2	—
DeepSeek-R1-Distill-Qwen-32B	72.6	83.3	94.3	62.1	57.2	1691

Notably from this, we can see that the DeepSeek distilled models outperform the specified models of GPT-4o and Claude, even at much smaller distilled sizes. Another interesting thing to compare is the two Qwen-32B models (distilled model is copied twice for easier comparison). The distilled reasoning model performs significantly better than trying to produce the emergent reasoning through RL in a smaller model.

Diminishing Returns

1. Model Scale

• DeepSeekMath-Base 7B (64.2% on GSM8K) outperformed Minerva 540B (58.8%), demonstrating that a model 77x smaller can lead in reasoning if the data quality is sufficiently dense.
• In Cosmos-Reason1, the 56B model showed an average improvement of only 5.2% over the 7B model in physical common sense (80.6% vs 75.4%).
• Both of which show that without better objectives like long Chain-of-Thought (CoT), simply increasing parameters hits a wall in abstract and physical grounding.

2. Data Scale

• Generic data plateaus were found in DeepSeekMath where the paper found that even large-scale web data (Common Crawl) must be meticulously filtered through a specialized pipeline to be effective for reasoning
• Unstructured data plateaus were seen when in the Cosmos-reason1 paper. They shifted from generic image-caption pairs to structured reasoning signals with Spatial Puzzles, VLM curation based arrow of time questions, reasoning based Multiple Choice Questions (MCQs) etc.

And in both GRPO and Cosmos-Reason1 we see that compute without structure hits a ceiling in both mathematical and physical learning. Hence, we use an SFT followed by RL refinement for both.

Robotic Grounding & Physicality Gap

The Precision Gap

• DeepSeekMath: This model does not directly address high-frequency control. It focuses on the logic of the thinking process. However, its GRPO framework is highly relevant. It reduces the computational overhead of RL by eliminating the value/critic model, which in a robotic context could free up memory and time for other computations or to improve the speed.
• DeepSeek-R1 Similar to DeepSeekMath, this model is not built for robotics or high-frequency control, and rather more built for reasoning in various tasks. The MLA architecture of the preceeding DeepSeekV3 is highly relevant though, as it allows for dramatically lower KV-Cache size, which can allows for cheaper compute or larger models compared to before.
• Cosmos-reason1: This model helps bring high-level reasoning and low-level robotic movemennt execution closer. The model achieves this using the text-based Chain-of-thought mechanism. Instead of the high level solution, since we have a CoT solution, we can break a large action into reason-based micro-activities (Like grab the door handle from the left) which are executable by the robot while the model maintains a high level understanding of the model.

Benchmark Critique

• DeepSeekMath - Heavily relies on static (though complex) reasoning benchmarks like GSM8K and MATH. It treats reasoning as a closed-loop symbolic problem.

• DeepSeek-R1 - Similarly, relies on a complex but still static tasks. These include various MMLU benchmarks (multiple-choice for general knowledge), as well as various other ones such as the American Invitational Mathematics Examination 2024 (AIME). While not the intent of the paper, this does bring some questions about how this style of reasoning would do in other domains outside of the ones used in the paper.

• Cosmos-reason1 - They consciously move away from static sources, and generate custom benchmarks designed for Physical AI modelling.

  • Data used during SFT stage
    • Physical Common Sense Data: Freeform VQA (Visual Question Answer) that is generated from 9.9K. high-quality video clips with detailed human-annotated captions
    • Embodied Reasoning Data: Curated from demonstrations of humans, robots, and vehicles performing goal-oriented tasks. (From AgiBot, BridgeData etc.)
    • Intuitive Physics Data: Data to understand the physical intuition of real world
      • Spatial puzzles: 3K videos where the model must reason about the correct orientation of shuffled image patches.
      • Arrow-of-Time (AoT): 30K video clips and their reversed versions used to identify temporal order.
      • Object Permanence: 10K clips synthesized robot simulation to evaluate the tracking of objects going out of scope.
  • Data used during RL stage
    • Human-Annotation Based MCQs: Traditional MCQs from the SFT curation process
    • Self-Supervised MCQs: Automatically generated based on the video data structure itself:
      • Temporal Puzzles: Solving puzzles with shuffled spatiotemporal video patches.
      • Arrow-of-Time Prediction: Determining if a video is playing forward or backward.

Engineering Bottlenecks

Dimensionality & Information Decay:

Cosmos-reason1 uses a uniform sampling of up to 32 frames at a maximum rate of 2 frames per second. This could cause information decay during the tokenization stage. Also, to maintain long-term reasoning (time-steps), spatial resolution is often sacrificed. The paper notes that while general physics (gravity) is captured well, fine-grained spatial relationships (millimeter-level precision for grasping) are often lost during the compression into discrete visual tokens.

Also, the use of hybrid-Mamba-LLM architecture over the pure transformer architecture, eventhough could result in lower time complexity, could result in the model having a slightly lower context window resulting in information loss.

Semantic-Motor Gap:

High-level reasoning fail to ground in motor primitives in

• The Arrow of Time Problem: Cosmos-Reason1 identifies that models struggle to perform above chance level with temporal causality.

• Abstract vs. Physical decisions: High-level reasoning often succeeds in saying what to do (e.g., "Pick up the bottle") but fails to understand the mechanical constraints (e.g., "The bottle is too heavy for this specific robot").

Solution to close this gap could be Environment Feedback. Without a reward signal that originates from a physical failure (e.g., a "Dropped a bottle" penalty in RL), the reasoning is still memorized logic rather than grounded physics.

Critical Synthesis & The "Load-Bearing" Audit

Load-Bearing Assumptions

Both the DeepSeekMath and the Cosmos-reason1 model focuses mainly on the reasoning density over the data volume. So if the internet data is over, the models focus more on structure.

Also, the GRPO model does not focus on a value function, this means that we can just have the model generate new completions, and score these with rule-based rewards to improve the model performance, rather than relying on human curated data.

Cosmos-Reason1 assumes physical reasoning can be scaled via self-supervised MCQs like Arrow-of-Time or Spatial Puzzles. This allows the model to continue learning from the real world (in video format) even if the data is exhausted.

DeepSeek-R1 primarily relies upon problems with verifiable solutions to provide rewards to the model, using only 146k prompts (which is a lot but not close to internet scale data). If internet data for pre-training was exhausted, further work could be still be done to allow for better reward signals in that data which could lead to reasoning in the areas that weren't originally used for RL before performance would bottleneck.

Foundational vs. Marginal Gains

• The DeepSeekMath paper is foundational in the introduction of GRPO, which changes the memory and computational efficiency of Reinforcement Learning models. It proved that the Critic model (A constant in earlier PPO implementations) is not necessary for reasoning tasks.
• DeepSeek-R1 is foundational in using reinforcement learning to produce reasoning by itself. It allows for these more advanced behaviors to emerge without requiring explicit human-annotated or cleaned data in.
• Cosmos-Reason1 is foundational in the introduction of hierarchical physical ontologies (Space, Time, Physics). It provides the first systematic framework for moving LLMs from pattern matching to physical reasoning.

The use of Long CoT is largely incremental, building on existing trends established by OpenAI's o1 and DeepSeek-R1.

Failure Modes

• The Arrow of Time Struggle: Despite specialized RL, reasoning about the irreversible nature of time (e.g., distinguishing forward vs. backward physics) remains a significant challenge.
• Ambiguity in Embodied Decisions: In embodied reasoning, models can still fail when choices are ambiguous. While RL teaches the model to reject all choices in such cases, the underlying failure mode is an inability to resolve high-uncertainty sensory input into a single motor plan.
• Reasoning Dead Ends: While reasoning is powerful in that it allows for the model to go down chains of reasoning and potentially even back up and fix mistakes, inevitably it can still get stuck in dead ends which it doesn't recover from. This can lead to the model becoming stubborn in some responses.

The Next 10,000 GPU-Hour Experiment

I would try to move the Cosmos-Reason1 model a step further by using a GRPO RL based environment-as reward feedback loop on a robot simulated in a physical environment instead of rule-based MCQs. This could help generate an environment/physical reward system that can be further extended to other robots or self-driving cars.

References

1. Shao et al., "DeepSeekMath: Pushing the Limits of Mathematical Reasoning in Open Language Models", 2024.
2. NVIDIA et al., "Cosmos-Reason1: From Physical Common Sense To Embodied Reasoning", 2025.
3. Guo et al., "DeepSeek-R1 incentivizes reasoning in LLMs through reinforcement learning", 2025.
